Diamond blades are designed to cut extremely tough materials like concrete, asphalt, brick, and stone. When everything is working correctly, the blade cuts smoothly, quickly, and with minimal effort.
But when something goes wrong, production slows down and frustration builds fast.
The good news is that most diamond blade problems have simple causes and easy fixes. Understanding what the blade is telling you can save time, money, and prevent damage to your equipment.

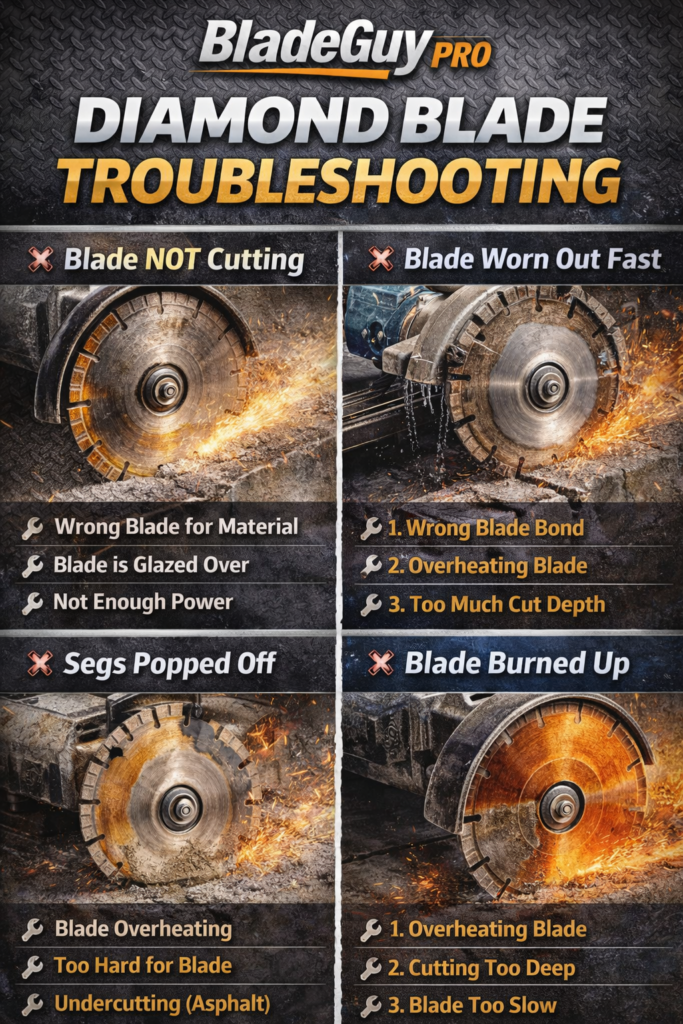

Below is a practical jobsite troubleshooting guide to diagnose and fix the most common diamond blade problems.
1. Blade Is Not Cutting (Glazing)
Symptoms
- Blade spins but barely cuts
- You must push very hard
- Cutting speed slows dramatically
- Blade feels smooth or shiny
Cause
The blade bond has become too hard for the material, preventing new diamonds from being exposed. This is called glazing.
Fix
Expose new diamonds by cutting an abrasive material.
Good options include:
- Asphalt
- Concrete block
- Sandstone
- Abrasive brick
Make several shallow cuts to reopen the blade.
Graphic: Glazed Blade
GLAZED BLADE
Before Dressing
—————–
| ◇ ◇ ◇ |
| Bond | ← Diamonds trapped in bond
|__________|
After Dressing
—————–
| ◇ ◇ ◇ |
| Bond | ← New diamonds exposed
|__________|
2. Blade Wearing Too Fast
Symptoms
- Segment height disappearing quickly
- Blade life extremely short
- Segments wearing unevenly
Causes
Possible reasons include:
• Blade bond too soft for the material
• Cutting highly abrasive material
• Excessive pressure during cutting
• Low quality blade with low diamond concentration
Fix
Use a harder bonded blade designed for abrasive materials like:
- Asphalt
- Green concrete
- Sandstone
- Block
Also let the blade cut at its own speed instead of forcing it.
Graphic: Fast Segment Wear
NEW BLADE
[████████]
WORN BLADE
[██]
Segment height determines blade life.
Less segment = less life remaining.
3. Blade Overheating
Symptoms
- Burn marks on material
- Steel core discoloration
- Excessive sparks
- Blade wobble
Causes
• No water on wet-cutting blade
• Pushing blade too hard
• Cutting too deep in one pass
• Poor slurry removal
Fix
- Use water when possible
- Make multiple shallow passes
- Occasionally lift the blade from the cut to cool
Heat is one of the fastest ways to destroy a diamond blade.
Graphic: Heat Buildup
TOO MUCH PRESSURE
Saw → >>>>>>>>
Blade overheats
Segments weaken
Core can warp
4. Blade Wobbling During Cut
Symptoms
- Vibration during cutting
- Uneven cut
- Blade wandering side to side
Causes
• Bent blade core
• Worn saw bearings
• Loose arbor nut
• Blade mounted incorrectly
Fix
Check the saw first.
Inspect:
- Arbor shaft
- Bearings
- Blade flanges
- Mounting direction
Often the saw is the problem, not the blade.
Graphic: Blade Wobble
STRAIGHT CUT
|
—–|—–
|
WOBBLING BLADE
/ \
—/ \—
5. Segments Breaking Off
Symptoms
- Missing diamond segments
- Loud popping noise during cutting
- Blade suddenly cutting unevenly
Causes
• Forcing blade into cut
• Twisting blade during cutting
• Hitting steel or hard aggregate suddenly
• Blade overheating
Fix
- Let the blade cut naturally
- Avoid twisting the saw during cutting
- Use blades designed for reinforced material if cutting rebar
Segment loss is usually operator related or heat related.
BladeGuy Pro Jobsite Tip
If your blade suddenly stops cutting well, ask yourself these three quick questions:
1. Am I using the right blade for the material?
2. Am I pushing too hard?
3. Is the blade overheating?
In most cases, fixing one of these solves the problem.
Final Thoughts
Diamond blades are incredibly durable tools, but they still require proper use. Most cutting problems are not blade defects—they’re application or equipment issues.
Understanding how blades work allows you to:
- Cut faster
- Extend blade life
- Reduce downtime
- Improve jobsite safety
And that’s what BladeGuy Pro is all about.
BladeGuy Pro
Real jobsite experience. Real cutting knowledge.
